Kev ntsuas kub thiab av noo tas li
Daim ntawv thov
Kev ntsuas kub thiab av noo tas li chamber ntsuas kub ntsuas qhov system: txhawm rau ua kom tiav qhov ntsuas kub, yuav tsum muaj qhov ntsuas kub.Programmable qhov ntsuas kub thiab av noo ntsuas chamber kub soj ntsuam feem ntau yog nyob ntawm qhov ntsuas kub ntsuas, ntsuas kub los ntawm lub ntsuas ntsuas yuav yog lub sijhawm tiag tiag rau kev tswj hwm kom paub qhov ntsuas kub hauv lub thawv, thiaj li ua tiav qhov ntsuas kub ua ntej.Kub sensors feem ntau siv hauv PT100 thiab thermocouples.
Parameter
| Qauv | KS-HW 80L | KS-HW 100L | KS-HW 150L | KS-HW 225L | KS-HW 408L | KS-HW 800L | KS-HW 1000L | |
| W * H * D (cm) Sab hauv Dimensions | 40 * 50 * 40 hli | 50 * 50 * 40 hli | 50 * 60 * 50 | 60 * 75 * 50 | 80 * 85 * 60 | 100 * 100 * 800 hli | 100 * 100 * 100 hli | |
| W * H * D (cm) Sab nraud Dimensions | 60 * 157 * 147 hli | 100 * 156 * 154 hli | 100 * 166 * 154 | 100 * 181 * 165 | 110 * 191 * 167 hli | 150 * 186 * 187 hli | 150 * 207 * 207 hli | |
| Sab hauv Chamber Volume | 80l ua | 100 L | 150 L | 225l ua | 408l ua | 800l ua | 1000L | |
| Qhov kub thiab txias | -70 ℃ ~ + 100 ℃ (150 ℃) (A: + 25 ℃; B: 0 ℃; C: -20 ℃; D: -40 ℃; E: -50 ℃; F: -60 ℃; G: - 70 ℃) | |||||||
| Humidity ntau | 20% -98% RH (10% -98% RH / 5% - 98% RH rau kev xaiv tshwj xeeb) | |||||||
| Kev ntsuas kub thiab av noo qhov tseeb / sib xws | ± 0.1 ℃;± 0.1% RH / ± 1.0 ℃: ± 3.0% RH | |||||||
| Kub thiab av noo tswj qhov tseeb / fluctuation | ± 1.0 ℃;± 2.0% RH / ± 0.5 ℃;± 2.0% RH | |||||||
| Kub nce / txias lub sij hawm | (Kwv yees li 4.0 ° C / min; kwv yees li 1.0 ° C / min (5-10 ° C poob ib feeb rau kev xaiv tshwj xeeb) | |||||||
| Cov khoom siv sab hauv thiab sab nraud | Lub thawv sab nrauv: Advanced Cold Panel Na-no Baking Paint;Inner box: Stainless hlau | |||||||
| Cov khoom siv rwb thaiv tsev | Kub kub thiab siab ceev chlorine muaj formic acid acetic acid ua npuas ncauj rwb thaiv tsev cov ntaub ntawv | |||||||
Khoom nta
Qhov ntsuas kub tsis tu ncua Environmental Test Chamber:
1. Txhawb nqa lub xov tooj ntawm tes APP tswj, los pab txhawb kev saib xyuas thiab tswj cov khoom siv ntawm lub sijhawm tiag tiag;(tus qauv qauv tsis muaj qhov tshwj xeeb no yuav tsum tau them nyias)
2. Kev tiv thaiv ib puag ncig thiab kev txuag hluav taws xob txuag hluav taws xob tsawg kawg 30%: kev siv thoob ntiaj teb nrov tub yees hom, tuaj yeem yog 0% ~ 100% tsis siv neeg hloov kho ntawm compressor tub yees lub hwj chim, piv nrog cov tsoos cua sov tshuav kub tswj hom kev siv hluav taws xob. txo los ntawm 30%;
3. Cov cuab yeej daws teeb meem qhov tseeb ntawm 0.01, cov ntaub ntawv xeem kom raug ntau dua;
4. Lub tshuab tag nrho yog ua tiav thiab molded los ntawm laser zauv tswj tshuab cuab yeej, uas muaj zog thiab ruaj khov;
5. Nrog USB thiab R232 cov khoom sib txuas lus, yooj yim rau kev sim cov ntaub ntawv ntshuam thiab xa tawm, thiab cov chaw taws teeb tswj;
6. Tsawg-voltage hluav taws xob txais yuav thawj Fabkis Schneider hom, muaj zog ruaj khov thiab ntev kev pab cuam lub neej;
7. Insulated cable qhov ntawm ob sab ntawm lub thawv, yooj yim rau ob txoj kev fais fab, rwb thaiv tsev thiab kev nyab xeeb;
8. Nrog tsis siv neeg dej ntxiv ua haujlwm, nruab nrog lub lim dej, es tsis txhob ntxiv dej manually;
9. Lub tank dej loj dua 20L saum toj no, muaj zog dej cia muaj nuj nqi;
10. Cov dej ntws, txo cov dej haus;
11. Cov txheej txheem tswj kev txhawb nqa kev txhim kho theem nrab, tuaj yeem nthuav dav raws li cov neeg siv khoom xav tau, hloov tau yooj yim dua.
12. Tsawg av noo hom tsim, av noo tuaj yeem qis li 10% (lub tshuab tshwj xeeb), ntau yam kom tau raws li qhov xav tau ntawm kev ntsuas siab dua.

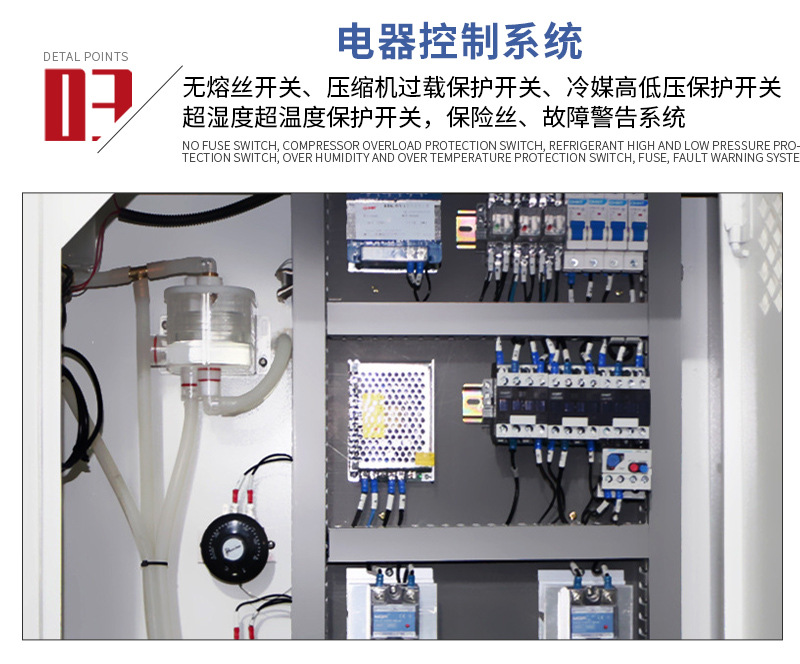

13. Humidification system piping thiab fais fab mov, xws li, Circuit Court board sib cais, txhim khu kev ruaj ntseg Circuit Court.
14. Plaub qhov kev tiv thaiv kub dhau (ob lub teeb tsa thiab ob qho kev ywj pheej), tag nrho cov khoom siv kev nyab xeeb los tiv thaiv cov khoom siv.
15. Lub tshuab nqus tsev loj lub qhov rais nrog teeb pom kev zoo kom lub thawv ci, thiab kev siv cov cua sov hauv lub cev ntawm cov iav tempered, txhua lub sijhawm kom pom tseeb qhov xwm txheej hauv lub thawv;
